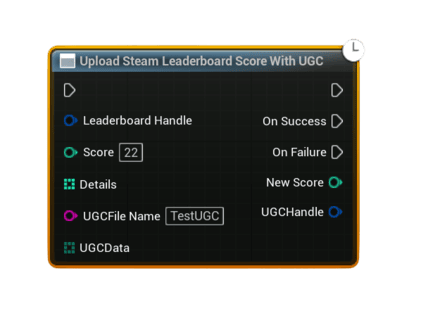

Upload Steam Leaderboard Score With UGC

Uploads a leaderboard score and attaches a UGC file in a single async call. This is useful for sending complex data like replays, ghost runs, screenshots, JSON save blobs, or any other binary payload together with a score.

• Important – Steam Cloud / Remote Storage: UGC upload and download require Steam Cloud to be enabled for your app in Steamworks.
• In your app’s Steamworks settings, enable Steam Cloud and set:
  • a reasonable Byte quota per user (enough for your replay / ghost / save data), and
  • a reasonable Number of files allowed per user.
• If these values are 0 or too low, UGC operations may fail or be rejected, causing the UGC nodes to fire On Failure.

Inputs

Pin	Type	Description
Leaderboard Handle	FSAL_LeaderboardHandle	Valid handle obtained from Find Steam Leaderboard or Create Steam Leaderboard.
Score	int32	Score value to upload to this leaderboard. Uses the Keep Best method internally.
Details	int32[]	Optional per-score metadata array (same as in the normal upload node). Can be empty.
UGC File Name	String	File name to use in Steam Remote Storage for this UGC payload (no path, just the name). If left empty, a name like SteamSAL_UGC_<timestamp>.json is auto-generated.
UGC Data	uint8[]	Binary contents to write into the UGC file. Use helper nodes (e.g. String To Bytes (UTF8)) if you want to send text/JSON; or build your own binary format for replays/ghosts.

Outputs

Pin	Type	Description
On Success	Exec	Fired when the UGC file is written, shared, the score is uploaded, and the UGC handle is successfully attached.
On Failure	Exec	Fired if any step in the chain fails (invalid handle, empty data, Steam not available, file write failure, upload failure, etc.).
New Score (On Success)	int32	Final score value reported by Steam after upload (may differ if clamped or overridden by Steam).
UGC Handle (On Success)	FSAL_UGCHandle	Handle to the shared UGC file attached to this score. Use this later when resolving or downloading the UGC.

What this node does internally

• Writes UGC Data to Steam Remote Storage using the given UGC File Name (or an auto-generated one).
• Shares that file to obtain a Steam UGC handle.
• Uploads the leaderboard score using Keep Best as the upload method.
• Attaches the shared UGC handle to the uploaded score via AttachLeaderboardUGC.

Usage

• Make sure Steam is available and you already resolved the Leaderboard Handle via Find or Create.
• Prepare your UGC Data:
  • For text/JSON: build a string and convert it to bytes with String To Bytes (UTF8).
  • For custom binary formats (replays, ghosts, etc.): serialize into a uint8[] however you prefer.
• Call Upload Steam Leaderboard Score With UGC with:
  • Leaderboard Handle
  • Score
  • Optional Details
  • Optional UGC File Name (leave empty to auto-generate)
  • UGC Data (must not be empty)
• On Success, store the returned UGC Handle together with the score or player data if needed, or rely on the handle exposed later through Get Downloaded Leaderboard Entry.

Notes

• If Leaderboard Handle is invalid, or UGC Data is empty, the node fails immediately with an explanatory error message.
• The node requires both Steam Remote Storage and Steam User Stats to be available; otherwise it will fire On Failure.
• Cloud status and quota are logged to the output log for easier debugging (account/app enabled state and space usage).
• The UGC file is stored in Steam Cloud bound to your AppID. Make sure Steam Cloud is enabled in your Steamworks settings if you plan to rely on this.
• Later, when you download leaderboard rows, you can check Has UGC and read the associated UGC Handle from Get Downloaded Leaderboard Entry to find and download the attached payload.
